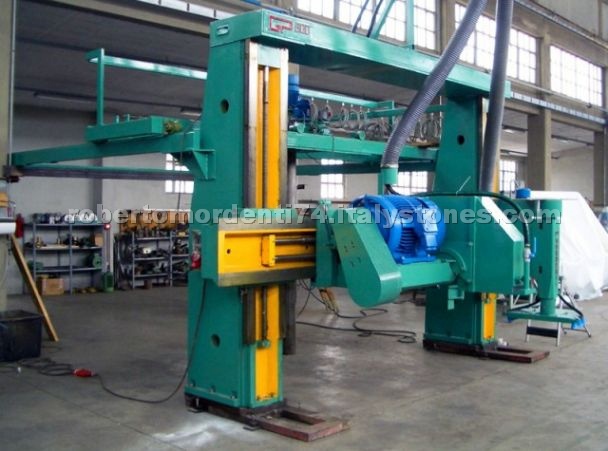

GP 800 - Marmo - Block Cutters

• Place of Origin:

   Italy

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1461324

• Place of Origin:

  Italy
• Lubrication sistem:
  All machine members are automatically lubricated by a pressure lubrication device.
  Vertical discs motors HP 120 ÷ 150
  Horizontal discs motors HP 30 ÷ 50
  Max size vertical disc on standard type machine: ? 1200 mm
  Machine with fixed worktable:
  - size of the block to process: mt 2,00 width x 3,50 length x 2,20 height
  - machine dimension: mt 5,00 width x 10 length x 4,00 height
  On request:
  A) Special spindle for vertical disc ? 1600 mm for cuts of 600 mm height
  B) Special machine with rotating worktable:
  - size of the block to process: mt 2,50 width x 3,00 length x 2,20 height
  - machine dimension: mt 6,00 width x 10 length x 4,00 height
  It is possible to obtain or various marble slabs, directly from the block. To produce little blocks it is necessary to apply just one vertical dist and one horizontal disc. To produce slabs it is necessary to apply different vertical discs having a diameter in relation to the cutting height, and as follows:
  n.1 Vertical disc ? 1600 mm. for cutting height mm. 600 (machine on request)
  n.2 Vertical discs ? 1200 mm. for cutting height mm. 400
  n.3 Vertical discs ? 1000 mm. for cutting height mm. 330
  n.4 Vertical discs ? 800 mm. for cutting height mm. 250
  n.8 Vertical discs ? 500 mm. for cutting height mm. 150
  Standard undertable (extention on request) mt. 7,5
  Diameter of vertical discs on standard type machine mm. 500-1200
  Horizontal disc diameter mm. 500-725
  Working feed with full load mt./1'''' 0,1-5
  Return working feed with full load mt./1'''' 18
  Total power installed HP 213
  Net weight about ton. 12
  Weight with sea packing about ton. 14
  Volume with sea packing about mc. 25
  Diameter of vertical discs on special machine mm. 900-1600
